0.03-0.08mm Low Noice Vertical Enameling Machine With Hearted Air Circulation

Product Categories
NEWLEAD WIRE AND CABLE MAKING EQUIPMENTS GROUP CO.,LTD
Contact Now

0.03-0.08mm Low Noice Vertical Enameling Machine With Hearted Air Circulation

Place of Origin : Jiangsu, China (Mainland)

Brand Name : newlead

Model Number : 5000

Price : Negotiation

MOQ : 1 Unit/Units

Certification : ISO CE

Supply Ability : 1 set 90 days

Delivery Time : 90 days

Packaging Details : wooden pallet

Usage : Coating

material : 0.3-0.8mm

Coating way : Dies

Coating passes : 9

Consumption : 300-400KW.H in 24 hours

DV : 25

Contact Now

Super Enameling machine in Vertical Enameling machine group for 0.03-0.08mm

Advanced technoloy:

1: No waste gas ,three time fully burning,no stoving varnish smell .

2:only 300-400kw.h in 24 hours,heat energy recycle using to annealer and dryer oven.(old technology is 550-600KW.h in 24 hours)

3:Saving USD150000/year in 10 years.

One. Equipment technical parameters and features

1. Wire range: Φ0.3mm -Φ0.8mm

2. Lines: 20

3. Painting pass: 9

4. Painting style :felt or dies

5. Distance of lines: 7mm

6. Maximum speed: 100m/min

7. Take-up spool specifications: PT15-PT25

8. pay-off spool specifications :Φ400 mm

9.The total installed capacity : about 130kw

specificationsΦ:(MM) Lines Painting channels DV value speed(M/Min) Output Kg/24h energy consumption Kw.h/t
QZ-2 QZ-2 QZ-2 QA-2 QZ-2 QA-2
0.40 20 8 25 62 1984 300kw.h/24h
0.50 20 8 25 50 2500
0.60 20 8 25 41 2952
0.70 20 8 25 36 3528
0.80 20 8 25 31 3840

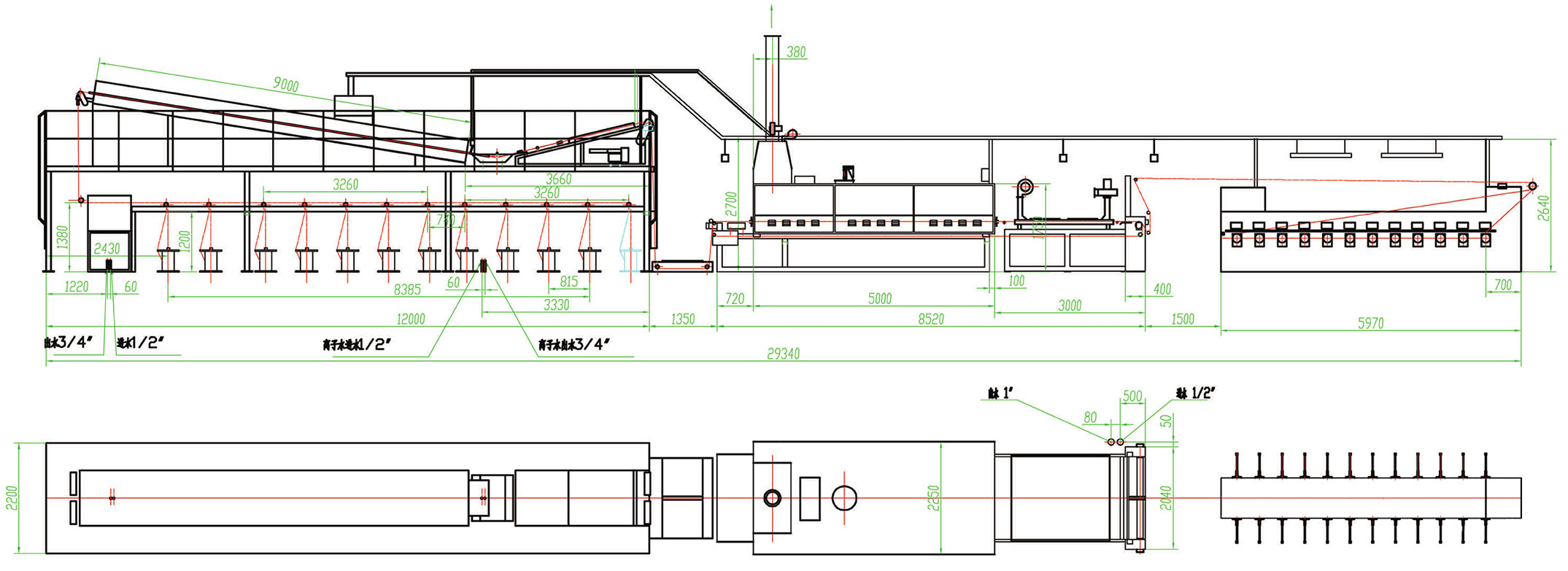

0.03-0.08mm Low Noice Vertical Enameling Machine With Hearted Air Circulation

0.03-0.08mm Low Noice Vertical Enameling Machine With Hearted Air Circulation

0.03-0.08mm Low Noice Vertical Enameling Machine With Hearted Air Circulation

0.03-0.08mm Low Noice Vertical Enameling Machine With Hearted Air Circulation0.03-0.08mm Low Noice Vertical Enameling Machine With Hearted Air Circulation0.03-0.08mm Low Noice Vertical Enameling Machine With Hearted Air Circulation0.03-0.08mm Low Noice Vertical Enameling Machine With Hearted Air Circulation
